CQB Fluorine Magnetic Coegi Centrifugal Pump Fabricatores

View Products Contact Us
  • CQB Fluorine Magnetic Coegi Centrifugal Pump
Fluoroplastic magnetica sentinam

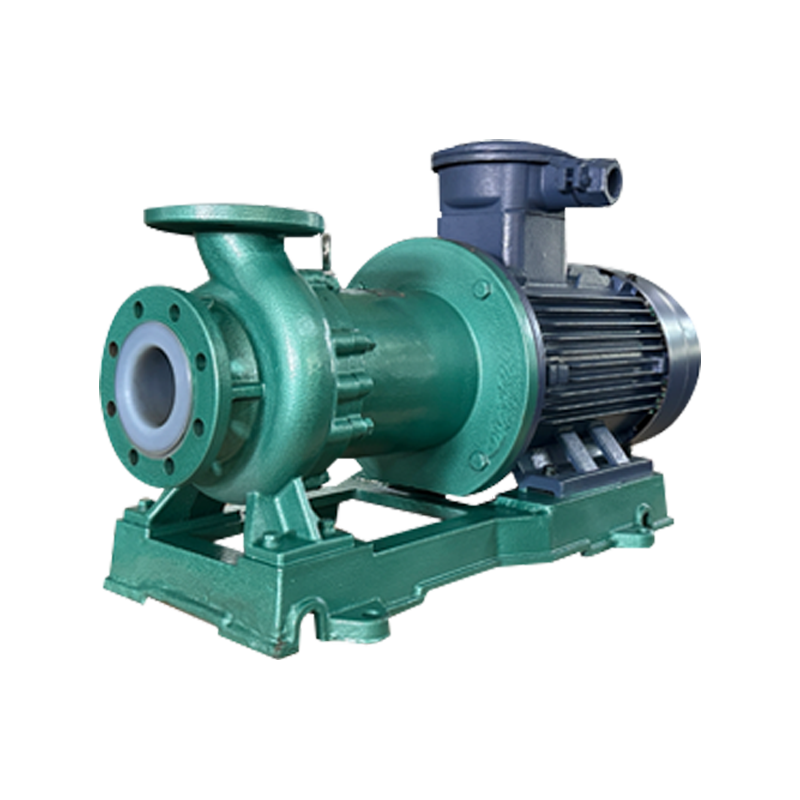

CQB Fluorine Magnetic Coegi Centrifugal Pump

Lorem Temperature: -20 ° C CL

CQB Series Fluorine plastic magnetica sentinam, usura magnetica coegi, sine dynamic sigillum punctum, solvendo generalis hastile coegi centrifuga sentinam sigillum extra run, stillant forsit.   Fluunt components uti fluorine plastic et summus puritas industriae Ceramics est optimum corrosio resistentia et sigillum facultatem, late in eget, Poena, et alia non-frugalum, acidum, organicum, et aluminium frugulas, acidum, organicum, et aluminium, et lapidibus, organicum, et in solvent, et lapidibus Liquids.

+ Contact Us + Catalogue Download

Product Description

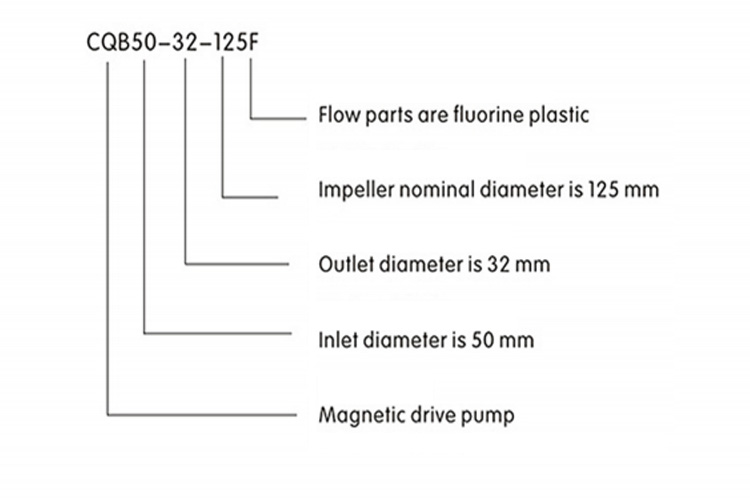

CQB structuram et Material & Model Sensus

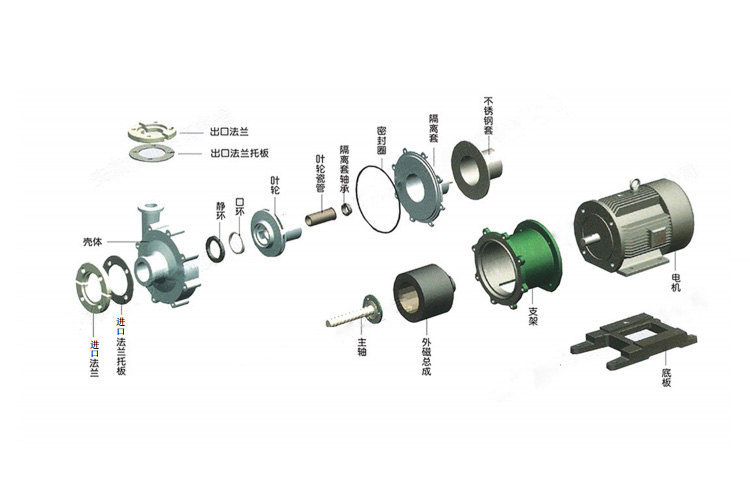

Structuram et material

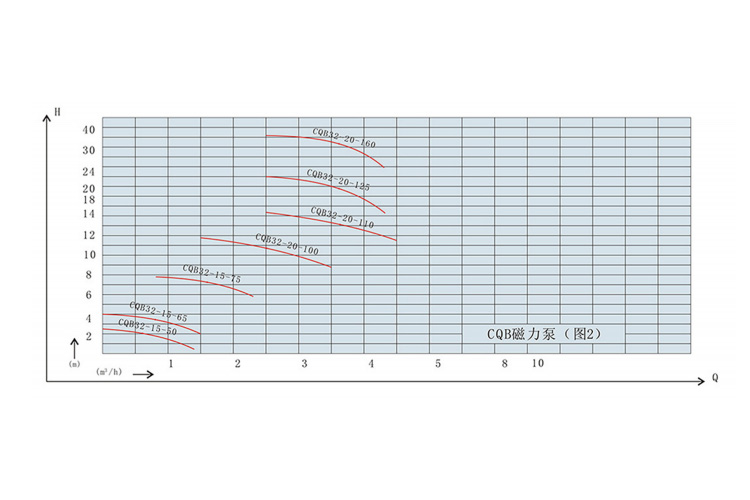

(N = 2900R / min) euismod curvas Diagram

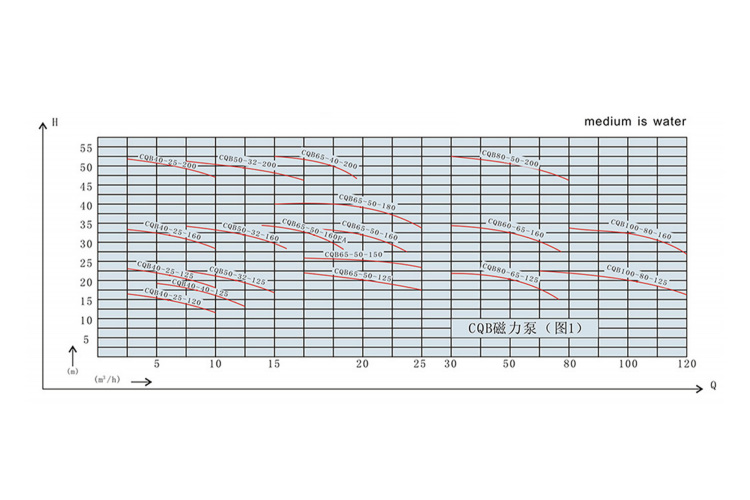

(N = 2900R / min) euismod curvas Diagram

Exemplar et Technical Date

Numerus Model Rev = 2950R / min Density = 1000KG / M³
Influo
(M³ / h) 		Pump caput
(M) 		η
(%) 		Lymphaticus
(M) 		Outlet
(M) 		Npsh
(M) 		Potentia
(Kw) 		Pondus
(KG)
1 Cqb32-20-110f 4 13.5 35 Φ32 Φ20 6 0.55 18
* 5.5 13
2 Cqb32-25-125f 2.5 21 37 Φ32 Φ20 6 1.5 20
* 3.2 20
3 Cqb32-20-160fs 2.5 33 38 Φ32 Φ20 5 1.5 50
* 3.2 32
4 Cqb40-25-120e 4 15.5 42 Φ40 Φ25 5 0.75 35
* 6.3 15
8 12
5 Cqb40-25-125f 4 22 41 Φ40 Φ25 4.5 1.5 54
* 6.3 20
8 16
6 Cqb40-25-160fs 4 33 36 Φ40 Φ25 5 2.2 / III 55
* 6.3 32
8 29
7 Cob40-25-200f 4 51 25 Φ40 Φ25 4.5 5.5 100
* 6.3 50
10 48
8 Cqb50-32-125f 7 22 42 Φ50 Φ32 3.5 1.5 45
* 12,5 20
15 16
9 Cqb50-32-16fs 7 33 40 Φ50 Φ32 3.5 4 80
* 12,5 32
15 29
10 Cqb50-32-200f 7 52 32 Φ50 Φ32 3.5 7.5 150
* 12,5 50
15 45
11 Cqb65-50-125fs 15 22 48 Φ65 Φ50 4 4 100
* XX 20
25 15
12 Cqb65-50-125f 15 22 46 Φ65 Φ50 4 4 130
* XXV 20
30 18
13 Cqb65-50-160fs 15 33 40 Φ65 Φ50 4 5.5 120
* XXV 32
35 28
14 Cqb65-50-160f 15 33 40 Φ65 Φ50 4 5.5 135
* XXV 32
35 28
15 Cqb65-40-200f 15 51 48 Φ65 Φ40 4 11 180
* XXV 50
30 48
16 Cqb80-65-125f 35 22 51 Φ80 Φ65 4 7.5 95
* L 20
60 18
17 Cqb80-65-160f 35 32 60 Φ80 Φ65 4 11 180
* L 32
60 27
18 Cqb80-50-200f 35 51 60 Φ80 Φ50 4 18.5 195
* L 50
60 45
19 Cqb100-80-125f 65 22 62 Φ100 Φ80 5 11 180
* C 20
110 18
20 Cqb100-80-160f 65 36 56 Φ100 Φ80 5 18.5 220
* 100 32
120 26

InstallSize / Flangesize

Foris
Modus 		Foris et installing magnitudine INLENUMENTUM FLIUM Exitum LABIUM magnitudine
L S P F W T H h X C a b N-φd k g 1 n-φt
Cqb32-20-110f 430 200 125 65 148 115 215 105 60 32 120 90 IV-φ14 20 90 65 IV-φ11
Cqb32-20-125f 435 265 65 50 180 150 244 110 67 32 140 90 IV-M16 20 100 75 IV-φ11
Cqb40-25-120f 435 265 65 50 180 150 244 110 67 40 140 100 IV-M12 25 100 75 IV-φ11
Cqb40-25-125f 440 265 75 50 180 150 244 110 67 40 140 90 IV-M12 25 100 75 IV-φ11
Cqb50-32-125f 510 265 100 85 180 150 270 125 76 50 130 100 IV-φ13 32 120 90 IV-φ11

InstallSize / Flangesize

Foris
Modus 		Foris et installing magnitudine INLENUMENTUM FLIUM Exitum LABIUM magnitudine
L S f W T H h P C a b N-φd k g i n-φt
Cqb32-20-160fs 578 225 85 220 180 330 170 / 32 140 100 IV-M16 20 100 75 IV-M12
Cqb40-25-160fs 625 225 85 220 180 330 170 / 40 150 110 IV-φ18 25 115 85 IV-M12
Cqb50-32-16fs 625 225 85 225 220 330 170 / 50 165 125 IV-φ18 32 140 100 IV-φ18
Cqb50-32-160fa 654 530 80 370 330 352 192 90 50 165 125 IV-φ18


32
140
140 		IV-φ18
Cqb65-50-125fs 625 225 85 260 220 330 170 / 65 185 145 IV-φ18 50 165 140
IV-φ18
Cqb65-50-160fs 760 350 105 260 220 330 170 / 65 185 145 IV-φ18 50 165 165 IV-φ18

InstallSize / Flangesize

Foris
Modus 		Foris et installing magnitudine INLENUMENTUM FLIUM Exitum LABIUM magnitudine
L B S P W T Y Q H h f C a b N-φd k g I n-φt
Cqb40-25-200f 740 620 450 80 370 330 / / 420 240 80 50 165 125 IV-φ18 25 115 85 IV-M12
Cqb50-32-200f 740 620 450 80 370 330 / / 420 240 80 50 165 125 IV-φ18 32 140 100 IV-φ18
Cqb65-50-125f 705 560 400 80 340 300 / / 177 317 80 65 185 145 IV-φ18 50 165 165 IV-φ18
Cqb65-50-160f 720 620 450 80 370 330 / / 212 372 80 65 185 145 IV-φ18 50 165 165 IV-φ18
Cqb65-40-200f 1035 750 500 100 440 405 380 340 415 235 100 65 185 145 IV-φ18 40 150 110 IV-φ18
Cqb80-65-125f 750 620 450 80 370 330 / / 212 373 100 80 200 160 IV-φ18 65 185 145 IV-φ18
Cqb80-65-160f 1035 850 550 125 460 415 380 340 415 235 100 80 200 160 IV-φ18 65 185 145 IV-φ18
Cqb80-50-200f 1050 750 500 100 440 405 380 340 435 235 105 80 200 160 IV-φ18 50 185 125 IV-φ18
Cqb100-80-125f 1050 850 550 125 460 415 380 340 415 235 110 100 220 180 IV-φ18 80 200 160 IV-φ18
Cqb100-80-160f 1085 850 550 125 460 415 380 340 435 235 100 100 220 180 IV-φ18 80 200 160 IV-φ18
+ Intellige detailed uber parametri
