FSB High-perficientur fluorine plastic centrifugal pump Fabricatores

View Products Contact Us
  • FSB High-perficientur fluorine plastic centrifugal pump
Fluor Lined Centrifugal Pump

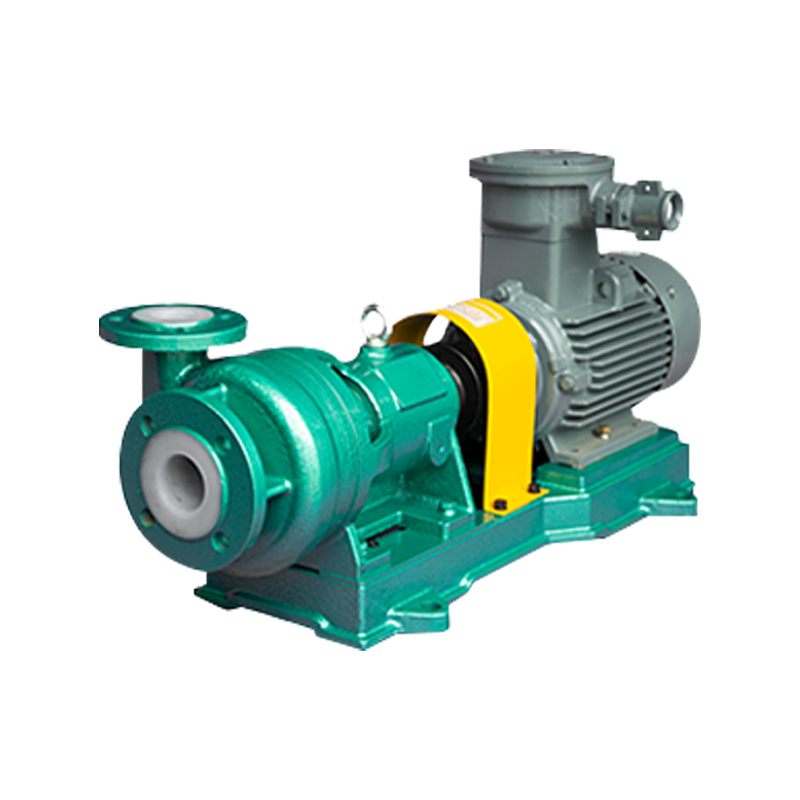

FSB High-perficientur fluorine plastic centrifugal pump

Lorem Temperature: -20 ° C CXX ° C

Fluorine plastic centrifugal sentinam fsb fluorine.  Et sentinam corpus, impulsor et sentinam operimentum usus est per metallum inserit et outsourcing fluorine plastic urgeat. Selectae sigillum utitur provecta exterior follicibus mechanica sigillum, facile Populus Novifacta.  Hoc productum est pacto, firmum et reliable perficientur.  Late usus est in acidum et alkali vestibulum, acidum Sauckling, imbre pingunt processus, et wastewater. Treatment, electroplating, pesticide, electrolytic onerariis in non-ferrea metallum Firmus, Ionic membrana Project CHLORUM aqua translationem industry.

+ Contact Us + Catalogue Download

Product Description

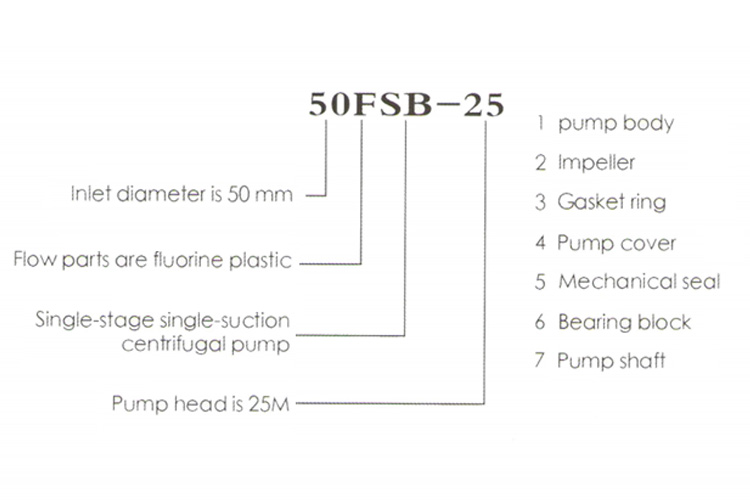

IHF (D) Model sensus & structuram et Material

Structuram et material

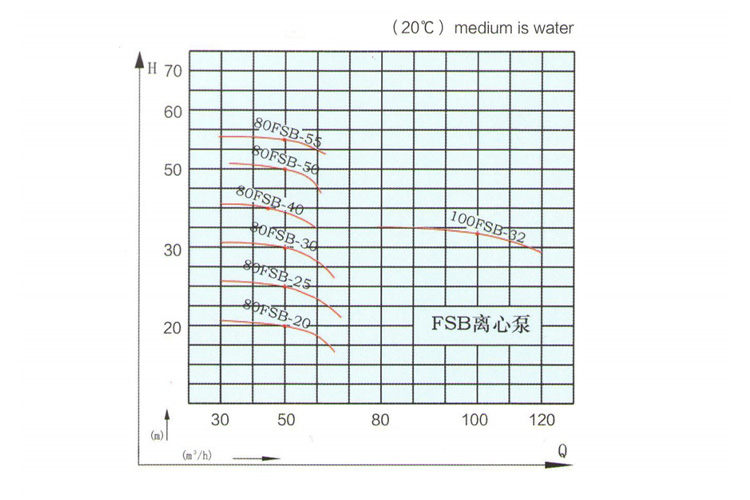

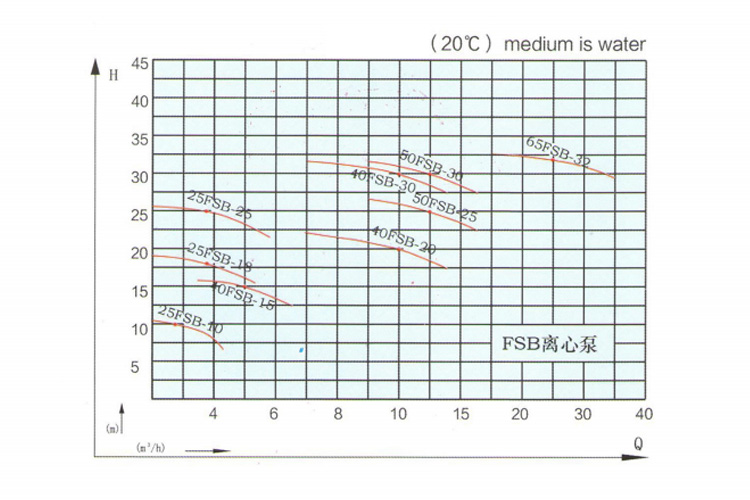

(N = 2900R / min) euismod curvas Diagram

(N = 2900R / min) euismod curvas Diagram

Exemplar et Technical Date

Numerus Model Psalm = 2900R / min medium density = 1000kg / m³
Influo
(M³ / h) 		Pump caput
(M) 		η
(%) 		Lymphaticus
(M) 		Outlet
(M) 		Npsh
(M) 		Potentia
(Kw) 		Pondus
(KG)
1 25fsb-X 1 11 25 Φ25 Φ20 3.0 1.5 48
1.5 10
2 7
2 25fsb-XVIII 2 20 27 Φ25 Φ20 3.0 2.2 48
3.6 18
6 17
3 25fsb-XXV 2 26 27 Φ25 Φ20 3.0 2.2 48
3.6 25
6 23
4 40fsb-XV 3.5 16 40 Φ40 Φ32 3.0 3 75
5 15
8 13
5 40fsb-XX 3.5 22 42 Φ40 Φ32 3.0 3 75
5 20
8 17
6 40fsb-XXX 8 31 42 Φ40 Φ32 3.0 3 75
10 30
12 27
7 50fsb-XXV 8 26 43 Φ50 Φ32 3.5 3 75
12.5 25
15 26
8 50fsb-XXX 8 31 42 Φ50 Φ32 3.5 3 75
12.5 30
15 26
9 65fsb-XXXII 15 33 45 Φ65 Φ50 3.5 5.5 120
25 32
30 27
10 80fsb-XX 35 21 45 Φ80 Φ65 3.5 5.5 130
50 20
60 17
11 80fsb-XXV 35 26 50 Φ80 Φ65 3.5 7.5 145
50 25
60 20
12 80fsb-XXX 35 31 59 Φ80 Φ65 4.0 7.5 145
50 30
60 27
13 80fsb-XL 35 41 48 Φ80 Φ50 4.0 11 195
50 40
60 35
14 80fsb-L 35 52 57 Φ80 Φ50 4.0 15 210
50 50
60 40
15 80fsb-LV 35 56 50 Φ80 Φ50 4.0 18.5 230
50 55
60 45
16 100fsb-XXXII 65 35 68 Φ100 Φ80 3.5 15 250
100 32
110 26

Install magnitudine / LABIUM magnitudine

Numerus EXemplar SCRIPTIO
L B S P A W T Y Q H h f x m IV-φc
1 25fsb-X 786 610 455 85 107 325 285 280 250 287 162 58 82 180 IV-φ16
2 25fsb-XVIII 786 610 455 85 107 325 285 280 250 287 162 58 82 180 IV-φ16
3 25fsb-XXV 786 610 455 85 107 325 285 280 250 287 162 58 82 180 IV-φ16
4 40fsb-XV 786 610 455 85 107 325 285 280 250 287 162 58 82 180 IV-φ16
5 40fsb-XX 786 610 455 85 107 325 285 280 250 287 162 58 82 180 IV-φ16
6 40fsb-XXX 786 610 455 85 107 325 285 280 250 287 162 58 82 180 IV-φ16
7 50fsb-XXV 786 610 455 85 107 325 285 280 250 287 162 58 82 180 IV-φ16
8 50fsb-XXX 786 610 455 85 112 325 280 275 230 287 162 58 82 180 IV-φ16
9 65fsb-XXXII 940 715 480 130 142 370 330 290 250 347 197 74 95 210 IV-φ16
10 80fsb-XX 980 715 480 130 142 370 330 290 250 347 197 74 95 210 IV-φ16
11 80fsb-XXV 980 715 480 130 142 370 330 285 250 347 197 74 95 210 IV-φ16
12 80fsb-XXX 980 715 480 130 142 365 330 340 240 347 197 74 95 210 IV-φ16
13 80fsb-XL 1096 840 660 90 142 430 390 340 300 410 230 85 118 265 IV-φ16
14 80fsb-L 1096 855 655 100 142 430 400 340 310 410 230 85 118 265 IV-φ16
15 80fsb-LV 1141 840 830 90 142 430 390 340 300 410 230 85 118 265 IV-φ16
16 100fsb-XXXII 1320 1270 830 215 142 500 440 350 440 500 280 100 118 265 IV-φ24

Install magnitudinE / LABIUM magnitudine

Numerus Exemplar Importari LABIUM magnitudine Import Flange magnitudine
c a b e N-D k g i j n-T
1 25fsb-X 25 100 85 18 IV-M10 20 100 75 15 IV-φ11.5
2 25fsb-XVIII 25 100 85 18 IV-M10 20 100 75 15 IV-φ11.5
3 25fsb-XXV 25 130 100 18 IV-M12 20 112 90 18 IV-φ11.5
4 40fsb-XV 40 130 100 18 IV-M12 32 112 90 18 IV-φ11.5
5 40fsb-XX 40 130 100 18 IV-M12 32 112 90 18 IV-φ11.5
6 40fsb-XXX 40 130 100 18 IV-M12 32 112 90 18 IV-φ11.5
7 50fsb-XXV 50 130 100 18 IV-M12 32 112 90 18 IV-φ11.5
8 50fsb-XXX 50 130 100 18 IV-M12 32 112 90 18 IV-φ11.5
9 65fsb-XXXII 65 185 150 18 IV-M12 50 160 130 22 IV-φ12
10 80fsb-XX 80 185 150 18 IV-M12 65 160 130 22 IV-φ12
11 80fsb-XXV 80 185 150 18 IV-M12 65 160 130 22 IV-φ12
12 80fsb-XXX 80 185 150 18 IV-M12 65 160 130 20 IV-φ13
13 80fsb-XL 80 190 150 18 IV-φ16 50 170 125 20 IV-φ17.5
14 80fsb-L 80 190 150 18 IV-φ17.5 50 170 125 20 IV-φ17.5
15 80fsb-LV 80 190 150 20 IV-φ17.5 50 170 125 20 IV-φ17.5
16 100fsb-XXXII 100 220 180 25 IV-M16 80 200 165 25 IV, m16
+ Intellige detailed uber parametri
