In domo / Productio / Centrifugal sentinam / Fluor Lined Centrifugal Pump / Uhb-ZK corrosio repugnans et gerunt, repugnans cæmento sentinam

Uhb-ZK corrosio repugnans et gerunt, repugnans cæmento sentinam Fabricatores

View Products Contact Us
  • Uhb-ZK corrosio repugnans et gerunt, repugnans cæmento sentinam
Fluor Lined Centrifugal Pump

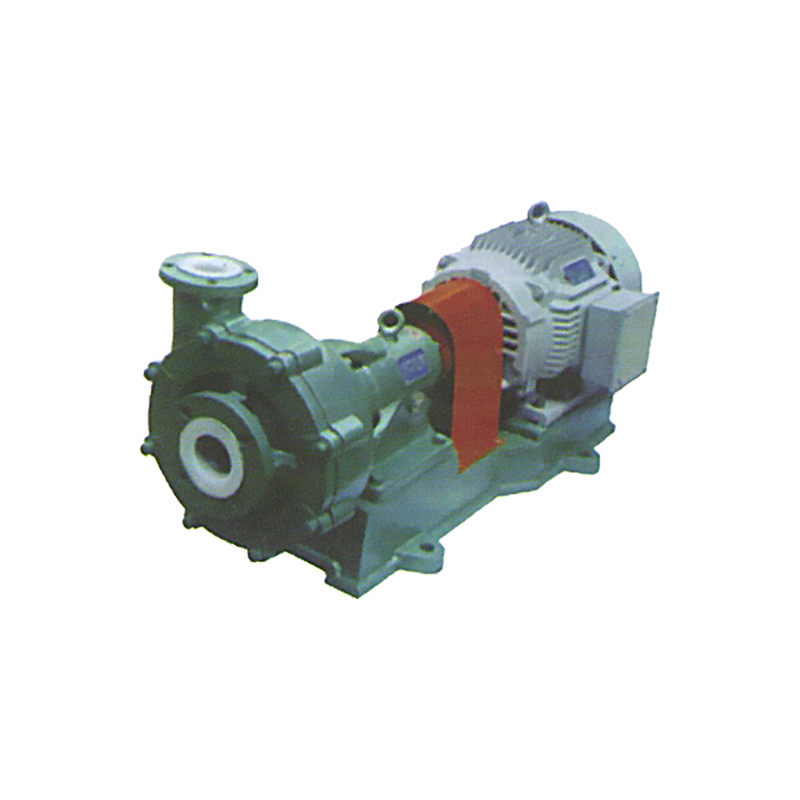

Uhb-ZK corrosio repugnans et gerunt, repugnans cæmento sentinam

Lorem Temperatus -20 ℃ -120 ℃

Uhb-Zk series anti-corrosio et anti-gere, et fluxus partes fiunt ex ferro tunica, novum generatio anti-corrosio et anti-gerunt.  The pump sets excellent wear resistance, impact resistance, corrosion resistance and high temperature resistance and other outstanding advantages in one, the design has k-shaped dynamic seal (uhb-zk), internal installed single end mechanical seal (uhb-nd), internal installed double end mechanical seal (uhb-ns) three sealing structure, can adapt to various working conditions.  Maxime idoneam important acidum, alkaline liquida aut slurry;  Omni generis corrosios pulpam in odorem industria;  Omnes organicum acid, fortis oxidant, environmental tutela industria omnes purgamentorum applicationem range valde extenses.

+ Contact Us + Catalogue Download

Product Description

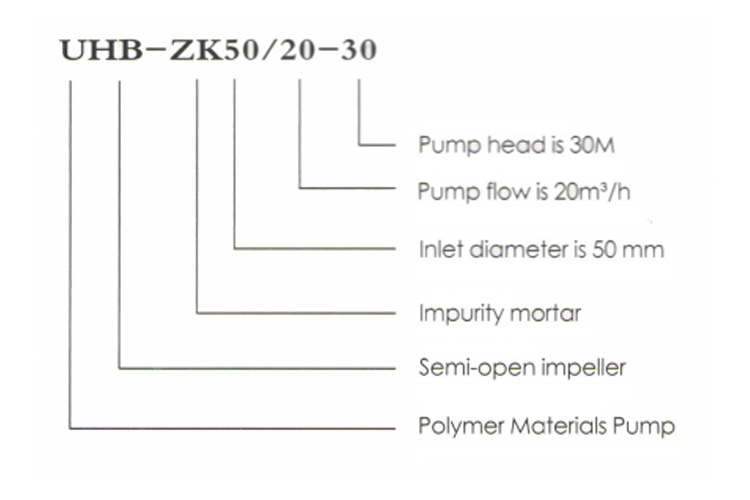

UHB structuram et Material & Model Sensus

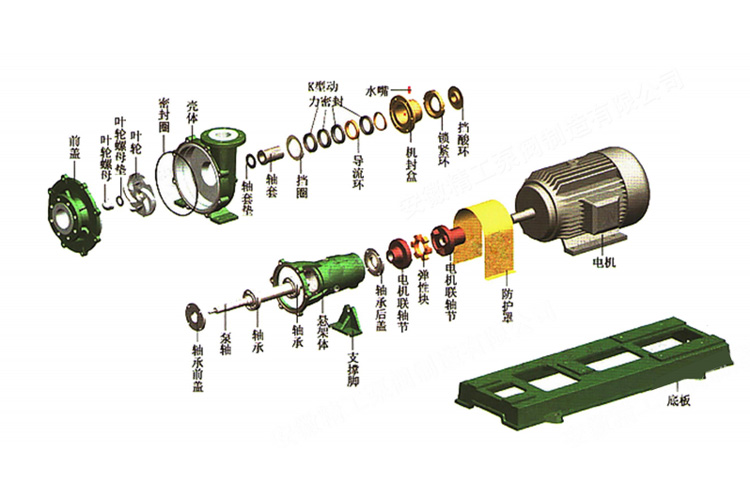

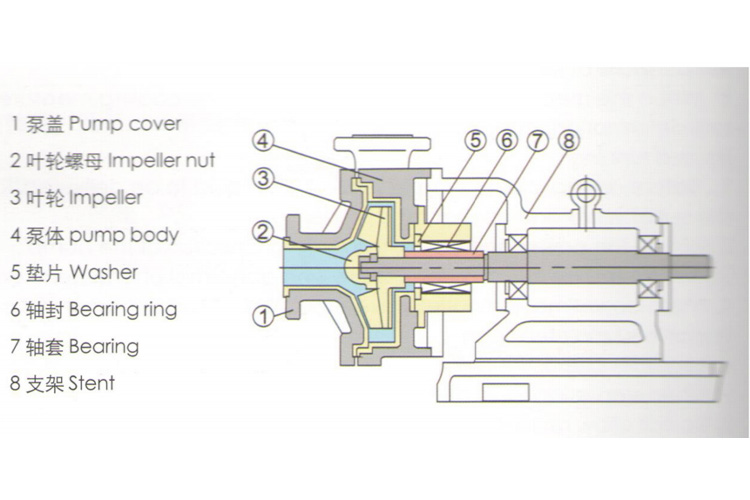

Structuram et material

Structuram et material

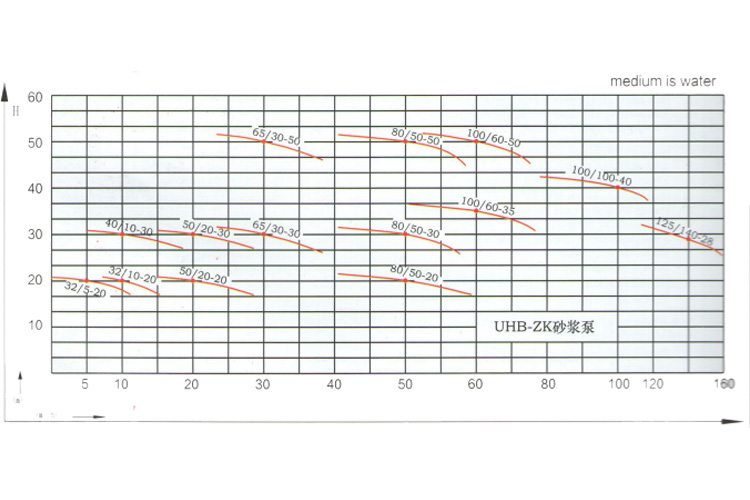

(N = 2900R / min) euismod curvas Diagram

Exemplar et Technical Date

Duo-scaena motor celeritate perficientur parametri

Numerus Model Psalm = 2900R / min medium density = 1000kg / m³
Influo
(M³ / h) 		Pump caput
(M) 		η
(%) 		Lymphaticus
(M) 		Outlet
(M) 		Npsh
(M) 		Potentia
(Kw) 		Pondus
(KG)
1 Uhb32-25-125 2 18 Φ32 Φ25 3.0 1.5 95
3.6 20
5 18
2 Uhb32-25-160 2 31 13 Φ32 Φ25 3.0 2.2 105
3.6 32
5 30
3 Uhb40-32-125 3 22 21 Φ40 Φ32 3.0 2.2 110
6.3 20
8 17
4 Uhb40-32-160 3 34 25 Φ40 Φ32 3.0 3 110
6.3 32
8 28
5 Uhb50-32-125 7 22 42 Φ50 Φ32 3.0 3 110
12.5 20
15 17
6 Uhb50-32-160 7 35 40 Φ50 Φ32 3.0 4 120
12.5 32
15 31
7 Uhb50-40-200 15 52 30 Φ50 Φ40 5.0 7.5 170
12.5 50
15 48
8 Uhb50-40-250 7 83 30 Φ50 Φ40 5.0 15 220
12.5 80
15 75
9 Uhb65-50-125 15 34 53 Φ65 Φ50 3.5 4 130
25 20
35 16
10 Uhb65-50-160 15 34 51 Φ65 Φ50 3.5 7.5 145
25 32
35 28
11 Uhb65-50-200 15 53 46 Φ65 Φ50 3.5 11 210
25 50
35 47
12 Uhb65-50-250 15 84 30 Φ65 Φ50 3.5 22 250
25 80
35 75
13 Uhb80-65-125 35 23 56 Φ80 Φ65 4.0 7.5 150
50 20
60 17
14 Uhb80-65-160 35 35 55 Φ80 Φ65 4.0 15 180
50 32
60 27
15 Uhb80-65-200 35 52 49 Φ80 Φ65 4.0 18.5 265
50 50
60 47
16 Uhb80-65-250 35 84 49 Φ80 Φ65 4.0 30 450
50 80
60 75
17 Uhb100-80-125 80 21 57 Φ100 Φ80 4.5 15 240
100 20
110 17
18 Uhb100-80-160 80 37 60 Φ100 Φ80 4.5 18.5 290
100 32
110 29
19 Uhb100-80-200 80 54 56 Φ100 Φ80 5.0 30 440
100 50
110 46
20 Uhb125-100-125 120 24 60 Φ125 Φ100 5.5 18.5 480
150 20
180 16
21 Uhb125-100-160 120 36 58 Φ125 Φ100 5.5 30 520
150 32
180 25
22 Uhb125-100-200 120 44 55 Φ125 Φ100 5.5 37 530
150 40
180 34

Exemplar et Technical Date

Quattuor scaena motore celeritate perficientur parametri

Numerus Model Rev = 1450R / min medium density = 1000kg / m³
Influo
(M³ / h) 		Pump caput
(M) 		η
(%) 		Lymphaticus
(M) 		Outlet
(M) 		Npsh
(M) 		Potentia
(Kw) 		Pondus
(KG)
1 Uhb50-32-125 4 5.5 37 Φ50 Φ32 3.0 0.75 80
6.3 5
8 3.5
2 Uhb50-32-160 4 9 35 Φ50 Φ32 3.0 0.75 80
6.3 8
8 6
3 Uhb50-40-200 4 23.5 35 Φ50 Φ40 5.0 1.5 115
6.3 12.5
8 11
4 Uhb65-50-125 8 5.5 45 Φ65 Φ50 3.5 1.1 110
12.5 5
15 4
5 Uhb65-50-160 8 8.5 43 Φ65 Φ50 3.5 1.1 115
12.5 8
15 6
6 Uhb65-50-200 8 13.5 39 Φ65 Φ50 3.5 2.2 160
12.5 12.5
15 11
7 Uhb65-50-250 8 21 37 Φ65 Φ50 3.5 4 240
12.5 20
15 19
8 Uhb65-50-315 8 33 39 Φ65 Φ50 3.5 7.5 270
12.5 32
15 30
9 Uhb80-65-125 16 6 48 Φ80 Φ65 4.0 1.5 130
25 5
35 4
10 Uhb80-65-160 16 9 53 Φ80 Φ65 4.0 1.5 135
25 8
35 10
11 Uhb80-65-200 16 13.5 45 Φ80 Φ65 4.0 3 170
25 12.5
35 10
12 Uhb80-65-250 20 21 42 Φ80 Φ65 4.5 5.5 270
25 20
35 18
13 Uhb80-65-315 16 34 39 Φ80 Φ65 5.0 11 295
25 32
35 30
14 Uhb80-65-400 16 52 35 Φ80 Φ65 5.0 22 480
25 50
35 47
15 Uhb100-80-125 35 5.5 52 Φ100 Φ80 5.0 1.5 165
50 5
60 3
16 Uhb100-80-160 35 9 55 Φ100 Φ80 5.0 2.2 220
50 8
60 6
17 Uhb100-80-200 35 13.5 52 Φ100 Φ80 5.0 4 340
50 12.5
60 10
18 Uhb100-80-250 35 21 50 Φ100 Φ80 5.0 7.5 390
50 20
60 18
19 Uhb100-80-315 35 33 46 Φ100 Φ80 5.0 15 450
50 32
60 47
20 Uhb100-80-400 35 52 42 Φ100 Φ80 5.0 22 520
50 50
60 47
21 Uhb125-100-160 70 9 56 Φ125 Φ100 5.0 11 480
100 8
6
22 Uhb125-100-200 70 13.5 54 Φ125 Φ100 5.0 15 500
100 12.5
120 11
23 Uhb125-100-250 70 21 52 Φ125 Φ100 5.0 18.5 550
100 20
120 18
24 Uhb125-100-315 70 33 49 Φ125 Φ100 5.5 30 680
100 32
120 30
25 Uhb125-100-400 70 52 46 Φ125 Φ100 5.5 37 720
100 50
120 48
26 Uhb150-125-200 140 14 56 Φ150 Φ125 5.5 22 720
200 12.5
240 11
27 Uhb150-125-250 140 22 53 Φ150 Φ125 5.5 30 780
200 20
240 18
28 Uhb150-125-315 140 34 48 Φ150 Φ125 6.0 45 850
200 32
240 30
29 Uhb150-125-400 140 52 43 Φ150 Φ125 6.0 75 1100
200 50
240 47
30 Uhb200-150-250 260 23 56 Φ200 Φ150 7.0 55 890
400 20
480 17
31 Uhb200-150-315 260 35 59 Φ200 Φ150 7.0 75 1120
400 32
480 30
32 Uhb200-150-400 260 53 62 Φ200 Φ150 7.0 110 1480
400 50
480 48
33 Uhb250-200-250 500 23 68 Φ200 Φ150 7.5 75 1150
650 20
750 17
34 Uhb250-200-315 500 35 66 Φ200 Φ150 7.5 110 1620
650 32
750 27
35 Uhb250-200-400a 350 50 62 Φ250 Φ200 7.5 110 1680
500 45
600 35
36 Uhb250-200-400 500 55 65 Φ200 Φ150 7.5 132 1880
650 50
750 46
37 Uhb300-250-315 800 36 70 Φ300 Φ250 8.0 160 2150
1000 32
1150 27
38 Uhb300-250-400 800 55 66 Φ300 Φ250 8.0 250 2800
1000 50
1150 46
39 UHB300-250-500 800 70 65 Φ300 Φ250 7.0 315 3200
1000 60
1150 55

Exemplar et Technical Date

Quattuor scaena motore celeritate perficientur parametri

Numerus Model Psalm = 980r / MIN Medium Density = 1000KG / M³
Influo
(M³ / h) 		Pump caput
(M) 		η
(%) 		Lymphaticus
(M) 		Outlet
(M) 		Npsh
(M) 		Potentia
(Kw) 		Pondus
(KG)
1 Uhb350-300-500 1400 35 70 Φ350 Φ300 8.0 250 3800
1800 32
2000 30

Install magnitudine / LABIUM magnitudine

Numerus Exemplar Foris et installing magnitudine INLENUMENTUM FLIUM Exitum LABIUM magnitudine
L L1 S P f W T H h X D C a b N-φd k g i n-φt
1 Uhb32-25-125 827 775 485 185 100 370 320 347 197 74.5 24 32 140 100 IV-φ18 25 115 75 IV-φ13.5
2 Uhb32-25-160 985 880 600 182 102 385 335 408 232 90 24 32 140 100 IV-φ18 25 115 75 IV-φ13.5
3 Uhb40-32-160 985 880 600 182 102 385 335 416 232 93.5 24 40 150 110 IV-φ18 32 140 100 IV-φ18
4 Uhb50-32-160 990 880 600 182 102 385 335 416 232 93.5 24 50 165 125 IV-φ18 32 140 100 IV-φ18
5 Uhb50-40-200 1100 950 650 205 120 435 385 450 240 108 25 50 165 125 IV-φ18 40 150 110 IV-φ18
6 Uhb65-50-160 1100 630 650 200 113 435 385 407 232 95 25 65 185 145 IV-φ18 50 165 125 IV-φ18
7 Uhb65-50-200 1255 1128 740 228 120 500 435 470 260 105 25 65 185 145 IV-φ18 50 165 125 IV-φ18
8 Uhb65-50-250 1340 1190 800 230 130 480 530 585 325 165 25 65 185 145 IV-φ18 50 165 125 IV-φ18
9 Uhb65-50-315 1165 1110 740 230 130 530 480 585 325 165 25 65 185 145 IV-φ18 50 165 125 IV-φ18
10 Uhb80-65-160 1245 1130 740 233 125 500 435 470 260 110 25 80 200 160 VIII-φ18 65 185 145 IV-φ18
11 Uhb80-65-200 1320 1140 740 237 130 490 440 480 260 125 25 80 200 160 VIII-φ18 50 165 125 IV-φ18
12 Uhb80-65-315 1340 1110 740 250 135 530 480 595 325 170 25 80 200 160 VIII-φ18 65 185 145 IV-φ18
13 Uhb100-80-160 1320 1130 740 245 139 500 435 470 260 110 25 100 220 180 VIII-φ18 80 200 160 VIII-φ18
14 Uhb100-80-200 1495 1350 945 264 130 590 535 530 300 125 25 100 220 180 VIII-φ18 80 200 160 VIII-φ18
15 Uhb100-80-315 1400 1350 940 264 144 540 490 630 350 160 25 100 220 180 VIII-φ18 80 200 160 VIII-φ18
16 Uhb125-100-315 1830 1500 940 468 328 620 550 760 440 190 25 125 250 210 VIII-φ18 100 220 180 VIII-φ18
17 Uhb125-100-400 1830 1500 940 475 335 620 550 910 475 223 25 125 250 210 VIII-φ18 100 220 180 VIII-φ18
18 Uhb150-125-315 1950 1500 940 496 356 620 550 945 475 223 25 150 285 240 VIII-φ18 125 250 210 VIII-φ18
19 Uhb150-125-400 2070 1620 1060 522 362 670 600 1012 510 270 28 150 285 240 VIII-φ18 125 250 210 VIII-φ18
20 Uhb200-150-315 2070 1620 1060 528 368 670 600 1022 510 270 28 200 340 295 XII, φ22 150 285 240 VIII-φ18
21 Uhb200-150-400 2338 1890 1240 528 368 790 720 1042 530 270 36 200 340 295 XII, φ22 150 285 240 VIII-φ18
22 Uhb250-200-400 2420 1890 1240 535 375 790 720 1102 580 305 36 250 405 355 XII, φ22 200 340 295 XII, φ22
23 Uhb300-250-315 2470 1890 1240 510 352 790 720 1102 580 285 36 300 460 410 XII, φ22 250 405 355 XII, φ22
24 UHB300-250-500 2720 2090 1500 515 360 820 750 1182 620 325 36 300 460 410 XII, φ22 250 405 355 XII, φ22
25 Uhb350-300-500 2770 2150 1550 516 380 840 770 1314 700 380 36 350 520 410 XVI, φ26 300 460 410 XII, φ22
+ Intellige detailed uber parametri
